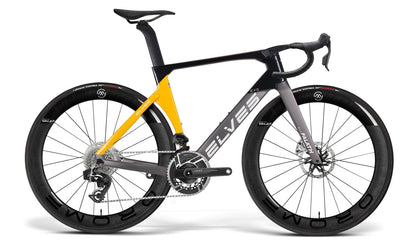

ELVES Falath EVO+ Carbon Road Disc Framesets UCI Approved

The Falath EVO, a revolutionary disruptor, is our UCI approved and ISO compliant aerodynamic race-ready road bike that has taken the industry by storm, gaining a winning reputation for both speed and ultimate rider comfort. Engineered with a Toray T800 and T1000 carbon fiber layup, the sharp aero lines have resulted in a super-stiff frame, creating aggressive power transfer and precision handling, making the Falath Evo the choice of amateur and professional race teams globally.

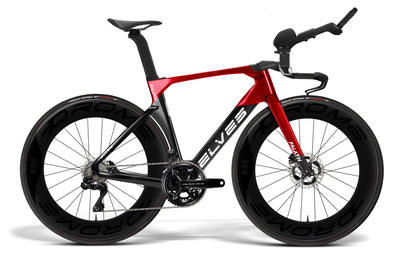

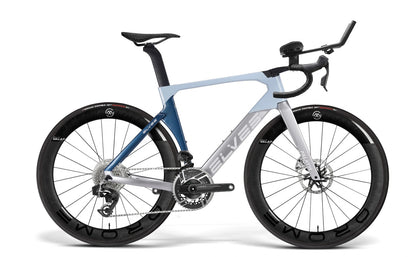

The Falath Evo can now be adapted to create the ultimate UCI approve Aero TT bike with the use of our new OROME Aero Ray pro/Sport bars and our OROME Aero Evo stem. A simple solution to creating a superb TT bike.

Elves frames are made in their own factory, with their own QA team and the frame has been UCI certified.

FRAME:
FULL-CARBON (TORAY T800 & T1000 CARBON FIBER)

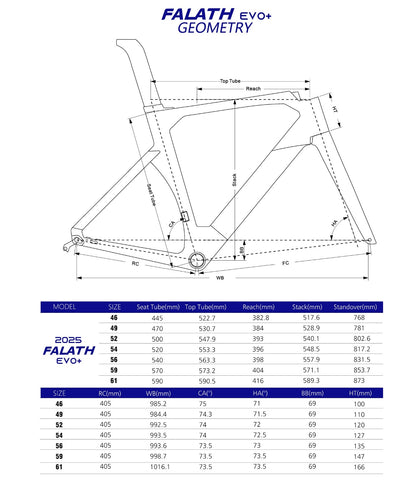

GEOMETRY: PRO
SEAT CLAMP: INTEGRATED
WEIGHT: 1035G (SIZE 46, UNPAINTED)
HEADSET BEARING: 1-1/2"X7mm LOWER,1-1/2" X7mm UPPER
BRAKE: FLAT MOUNT
BOTTOM BRACKET: T47 Aluminum BB

• T47-24 for Shimano crank 24mm axle
• T47 for SRAM 28.99 axle


ELECTRIC DRIVETRAIN: Di2 & E-TAP COMPATIBLE
EPS MOLDING TECHNOLOGY
FULL INTEGRATED CABLE ROUTING
THRU AXLE DIMENSION: M12X1.5X163 mm
MAX TYRE SIZE: 700CX32C
MAX ROTOR SIZE: UP TO 160MM

Fork
FULL-CARBON FORK
WEIGHT: 415g
OFFSET: 45mm
BRAKE: FLAT MOUNT
STEER TUBE LENGTH: 300mm
THRU AXLE DIMENSION: M12X1.5X121 mm
MAX ROTOR SIZE: UP TO 160MM

Seat Post
LENGTH: 350mm with 20mm Offset
WEIGHT: 250g
SINGLE BOLE PIVOT PRECISE ADJUSTMENTS
SEATPOST: FULL-CARBON
SADDLE CLAMP: 7X7mm SADDLE RAIL CLAMP (7X10mm CLAMP FOR CARBON RAIL INCLUDED)

Certification
UCI APPROVED
BOTH EN 14766 AND ISO 4210-6:2014

Accessories
T47 CERAMIC BEARINGS BB
ELVES HEADSET = INTEGRATED HANDLEBAR SPACERS
REAR DERAILLEUR HANGER X2

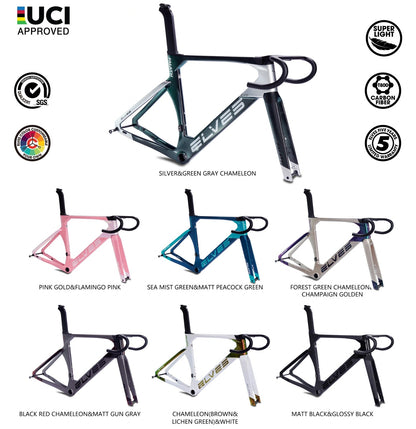

Available Colours:

Special Colours

Silver Crystal
Champaign Golden Crystal
Chameleon (Nebula) Crystal

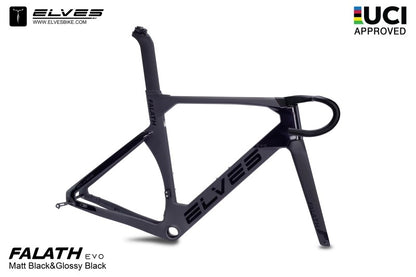

Matt Black & Glossy Black
Custom Factory Paint

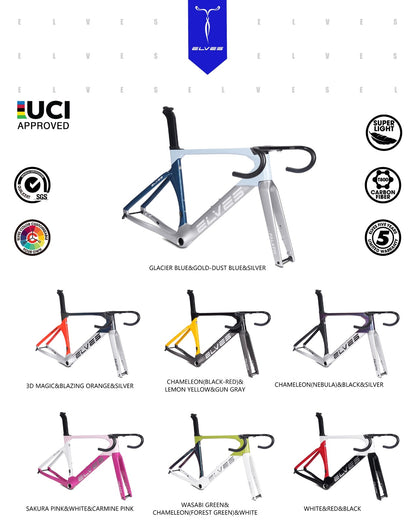

Standard Colors:

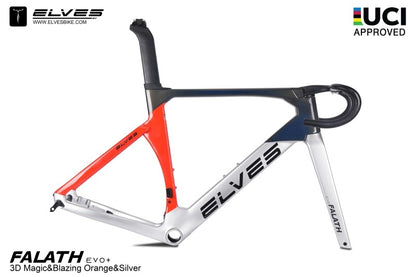

3D Magic & Blazing Orange & Silver

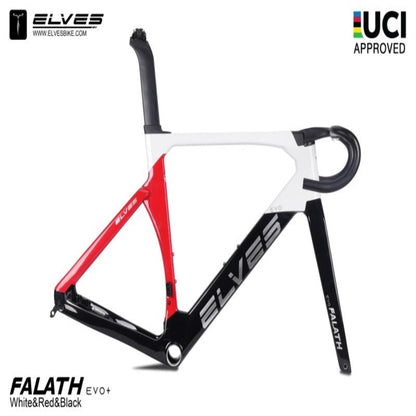

White & Red & Black

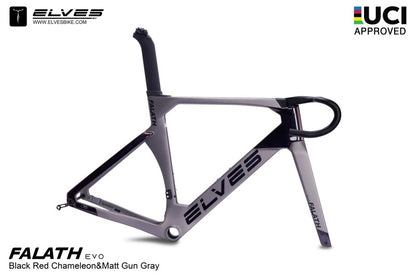

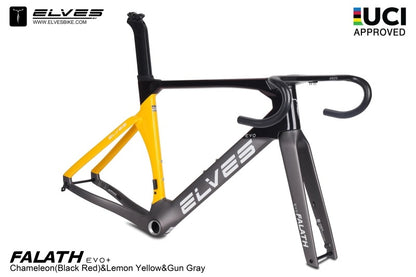

Chameleon (Black Red) & Lemon Yellow & Gun Gray

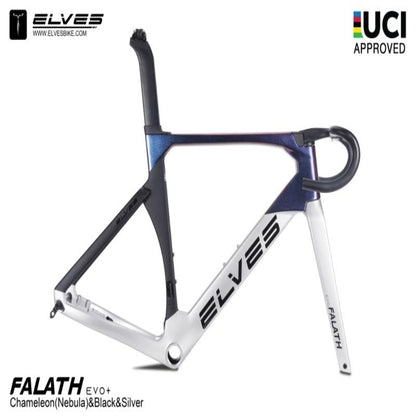

Chameleon (Nebula) & Black & Silver

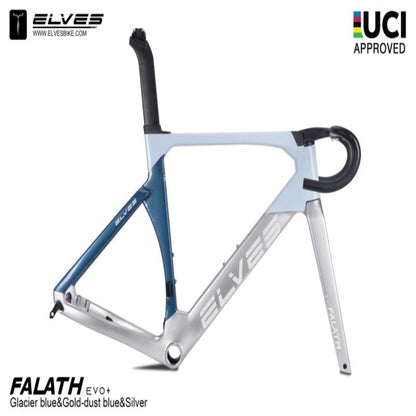

Glacier blue & Gold-dust blue & Silver

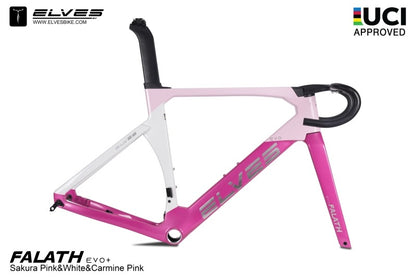

Sakura Pink & White & Carmine Pink

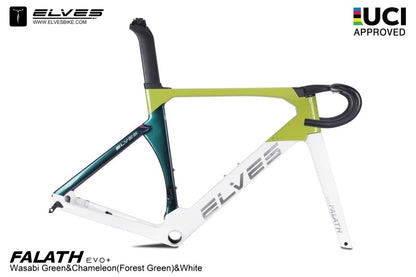

Wasabi Green & Chameleon (Forest Green) & White
