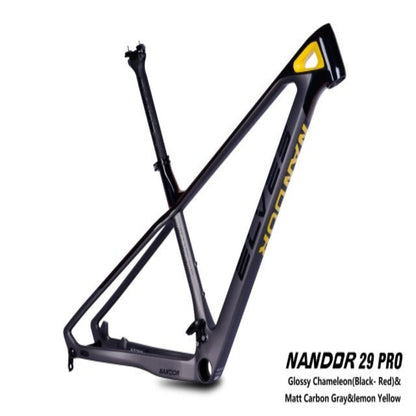

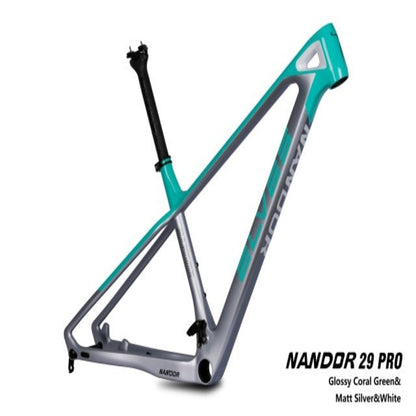

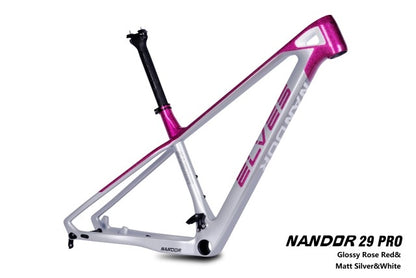

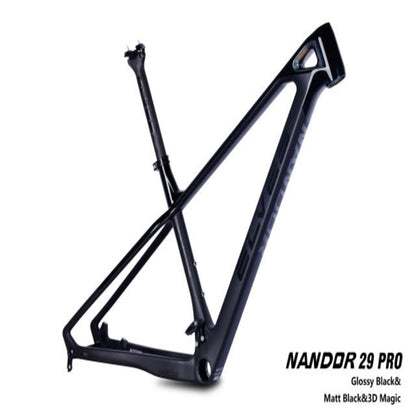

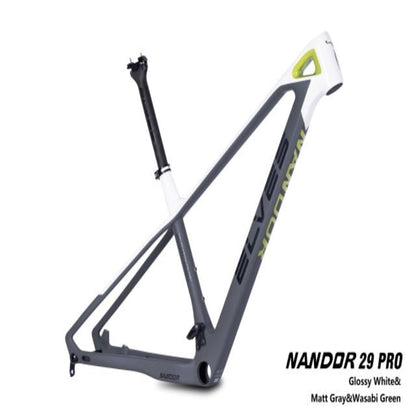

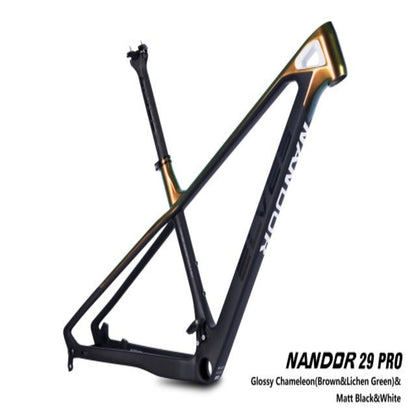

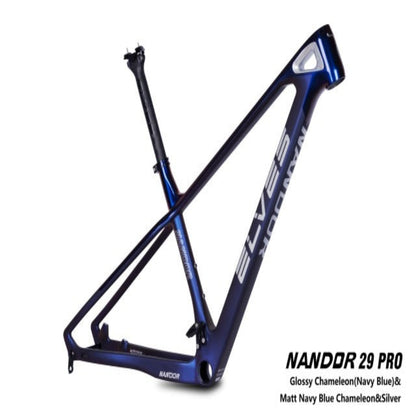

ELVES Nandor Pro 29er XC MTB Hardtail Carbon Frame

A superlight (sub-1kg), agile frame, modern geo - press fit PF30. Upgrade your old whip or build a sub 9kg race machine! 148mm rear end - means most bikes from the last 3-5 years will be a candidate for changeover.

5-year warranty on frames. Sydney, Aus distributor. If you need groupsets, send us a message.

The factory holds unpainted frames in stock.

When you choose a colour, the frame takes about less than 4 weeks to be painted and prepared to be shipped, which takes about a week. We do offer custom painting for no extra cost.

FRAME ELVES NANDOR Pro 29" XC FRAME
The Nandor PRO 29er XC complete race ready hardtail frame that utilises T1000 (30%) and T800 (70%) Toray carbon fibre and weighs in at just 980g (15” unpainted frame).

Elves research and development has resulted in a frame geometry that boasts a longer reach and slacker headtube angles for a more confident high-speed descent.
Engineered to perfection, our third generation Nandor has an “X” headtube, which at a first glance, may appear somewhat oversized. However, our engineer’s design thinking goes far deeper than simply having sufficient room for internal cabling.
The combination of the trapezoidal downtube and “X” headtube, has resulted in our riders being able to channel every watt of power into the bike by utilising a stronger head tube design that resists cornering forces and aids precision steering delivering instantaneous responses and optimal power.

Combined with 148mm boost bottom bracket and rear axle widths and the ability to accept both 29” & 27.5” wheels, our Nandor PRO 29er is the perfect frame to build into your XC perfect bike.

FRAME:　FULL-CARBON (TOARY T800 + T1000 FIBER)

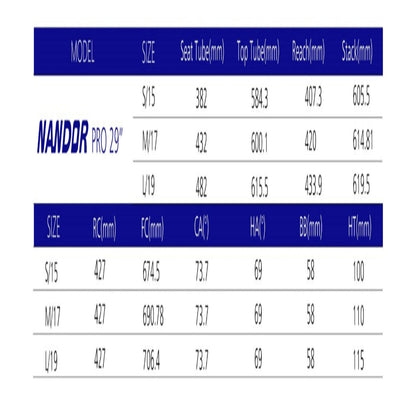

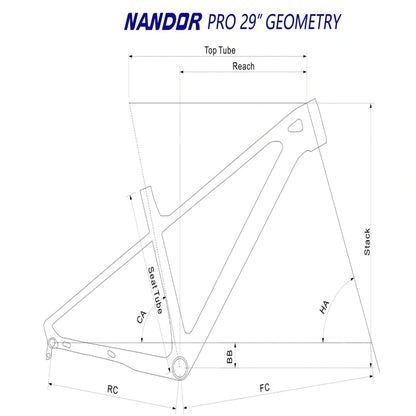

GEOMETRY: Pro

SEAT CLAMP：φ36.8MM

WEIGHT: 900g (29X15" W/T Paint and Metal Parts)

HEADSET: 1-1/2" LOWER, 1-1/2" UPPER

BRAKE MOUNT: 160mm DIRECT POST MOUNT

BOTTOM BRACKET：PRESS FIT PF30

ELECTRIC DRIVETRAIN: Di2&E-TAP COMPATIBLE

EPS MOLDING TECHNOLOGY

Full INTEGRATED CABLE ROUTING

Rear Hub Spec: Boost 12X148MM

FORK TRAVEL RECOMMENDS: 80MM~120MM
